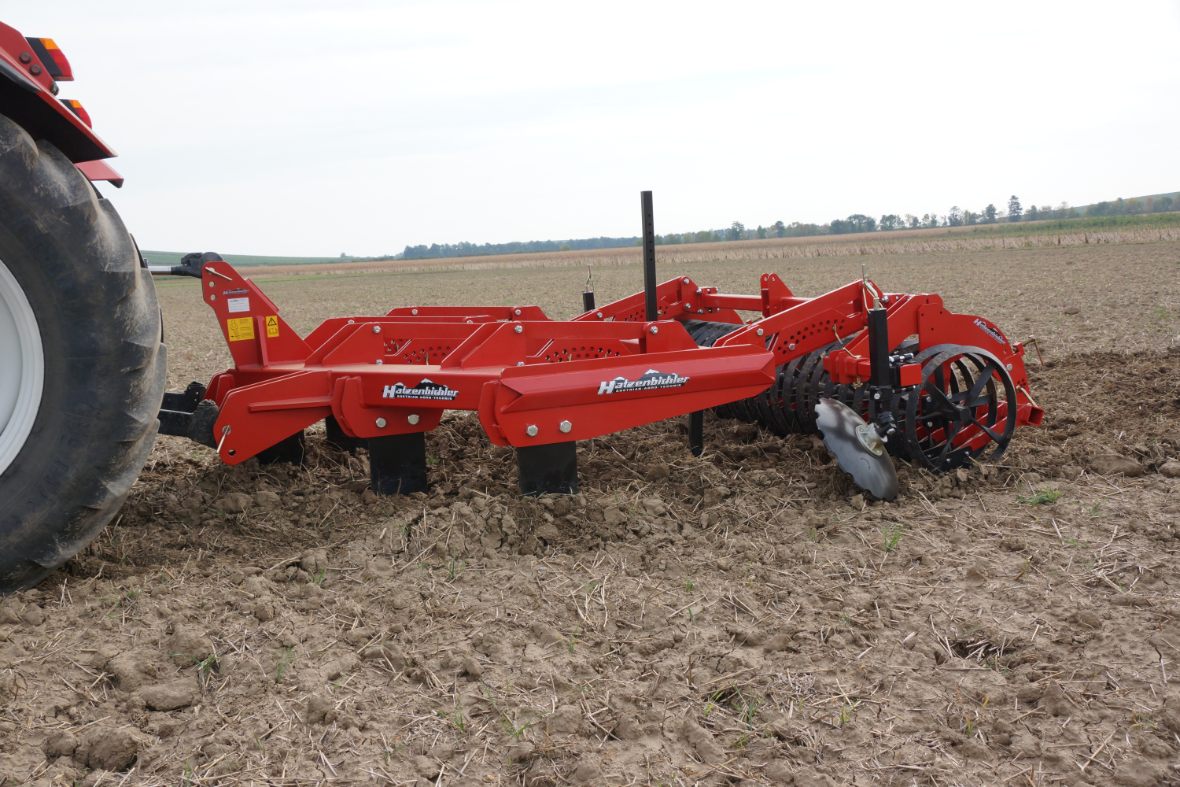

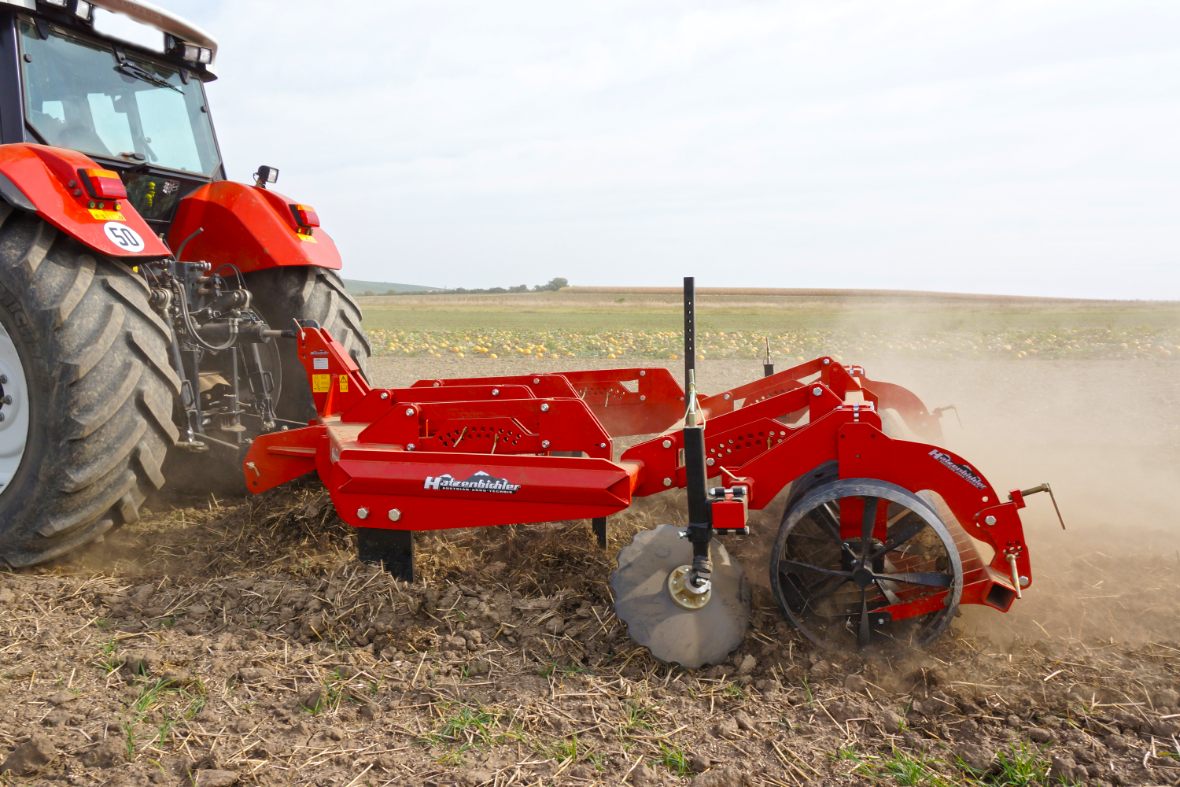

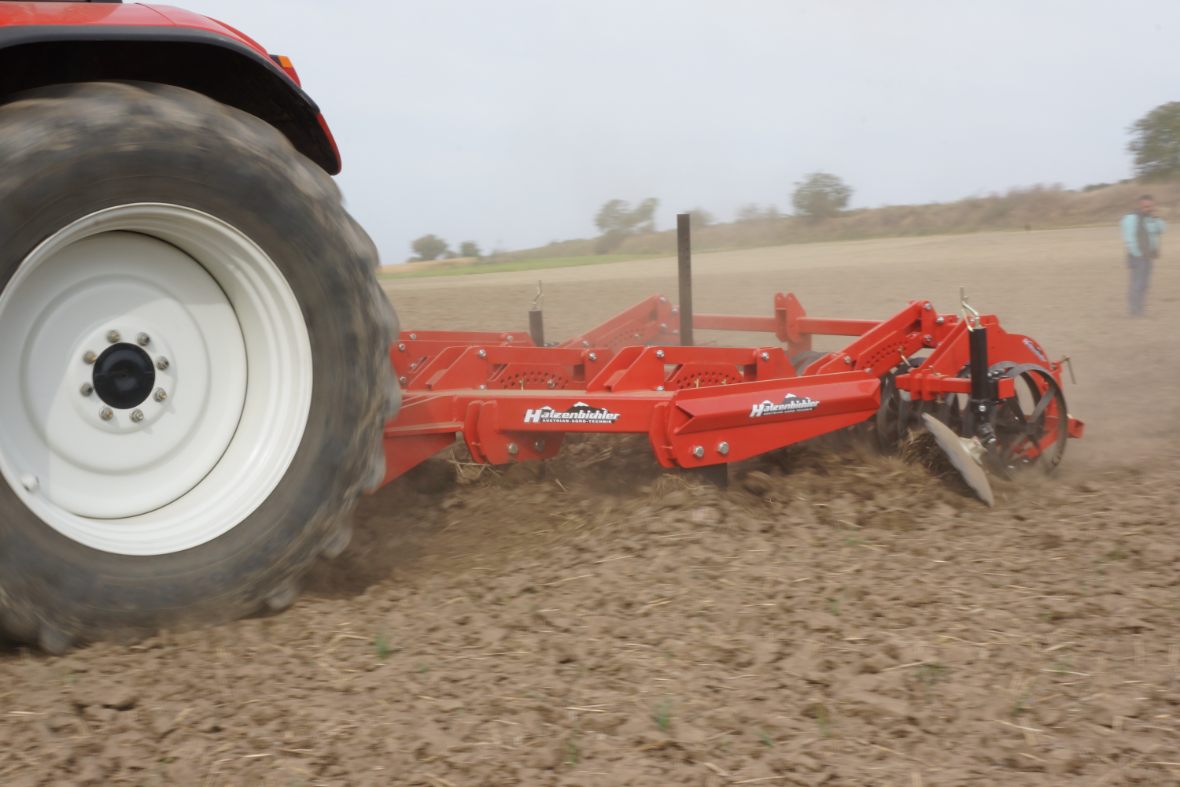

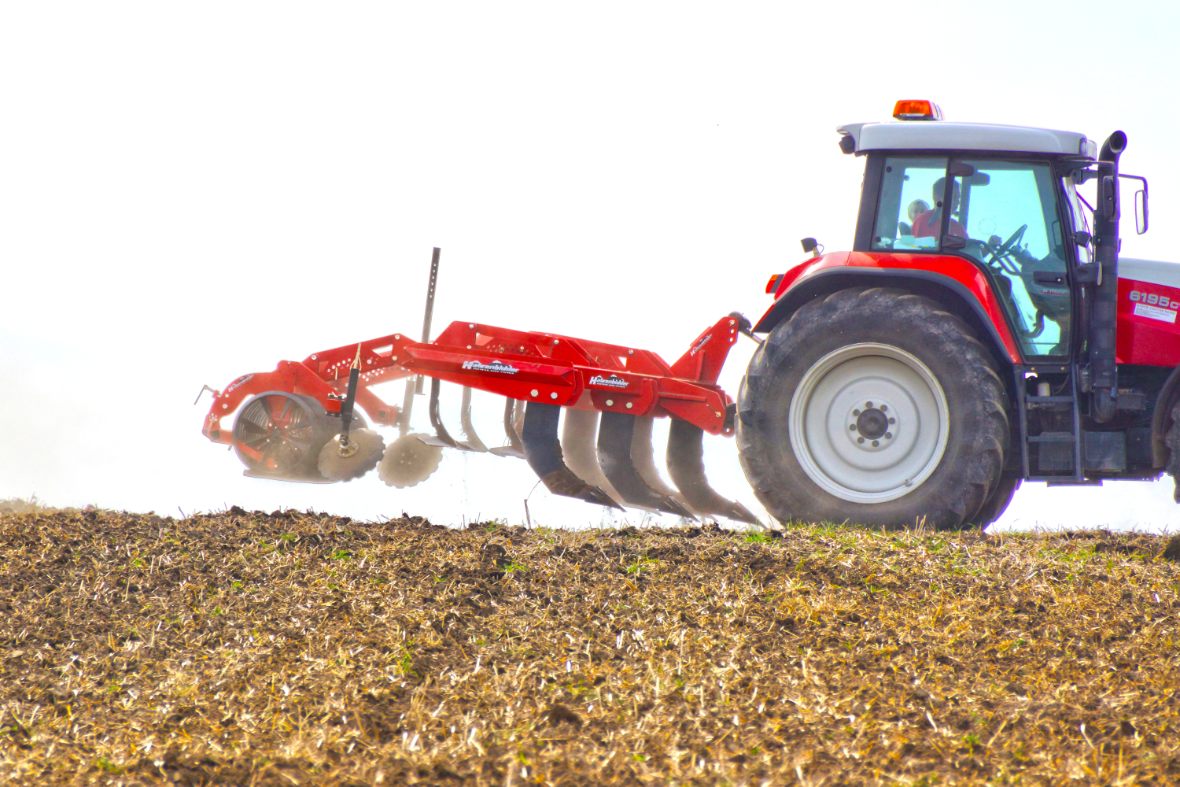

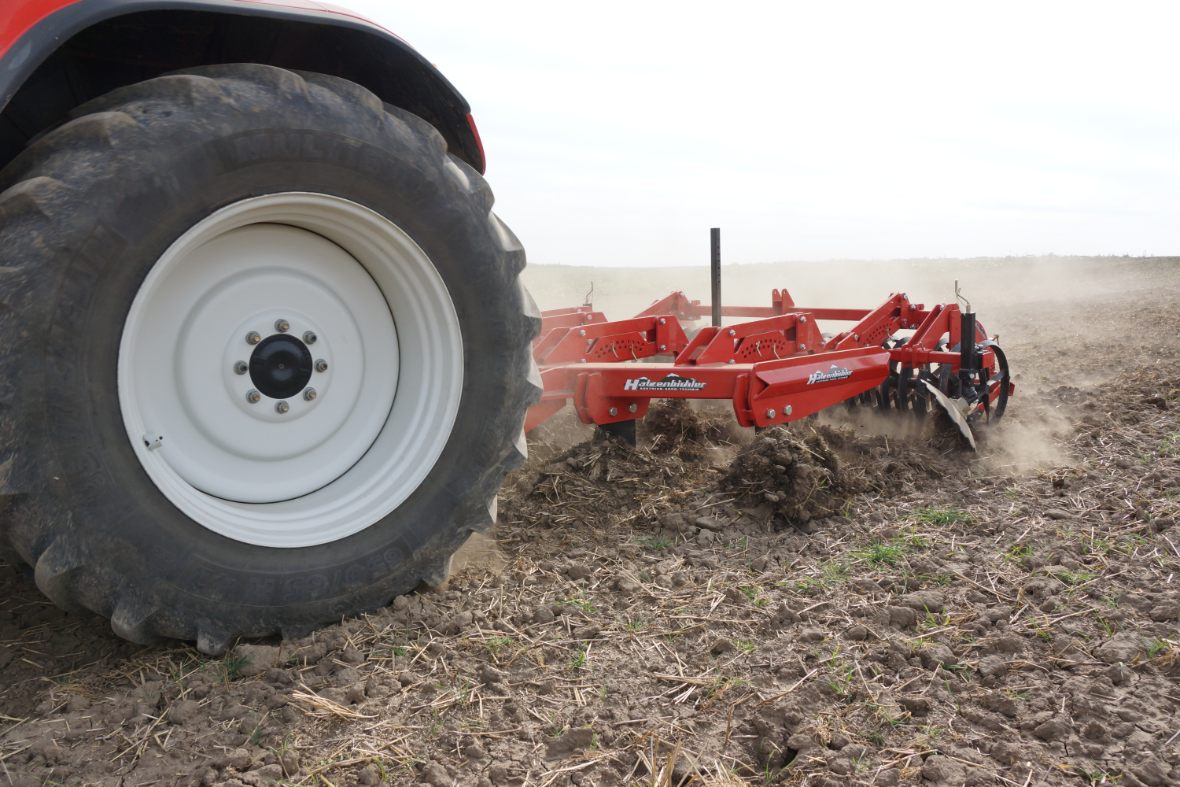

Subsoiler "Delta"
Loosens up the soil and easy to tow
- Loosens up the soil
- Easy to tow
- Using high quality tines and shares, you’ll find a longer lifetime
The special shape of the tine blades, protective shear bolt, diameter 25mm and their special arrangment on the V-frame (inside diameter 80cm) result in outstanding soil entry even when the soil is very hard or compacted.
Working widths from 1,50m to 6m, with 3,5,7 or 9 tines. Easy pulled - reduced power requirement, it´s for good soil entry. Sub-soil plough from 30 to 60 cm and stubble turner from 10 to 25cm in a single operation.

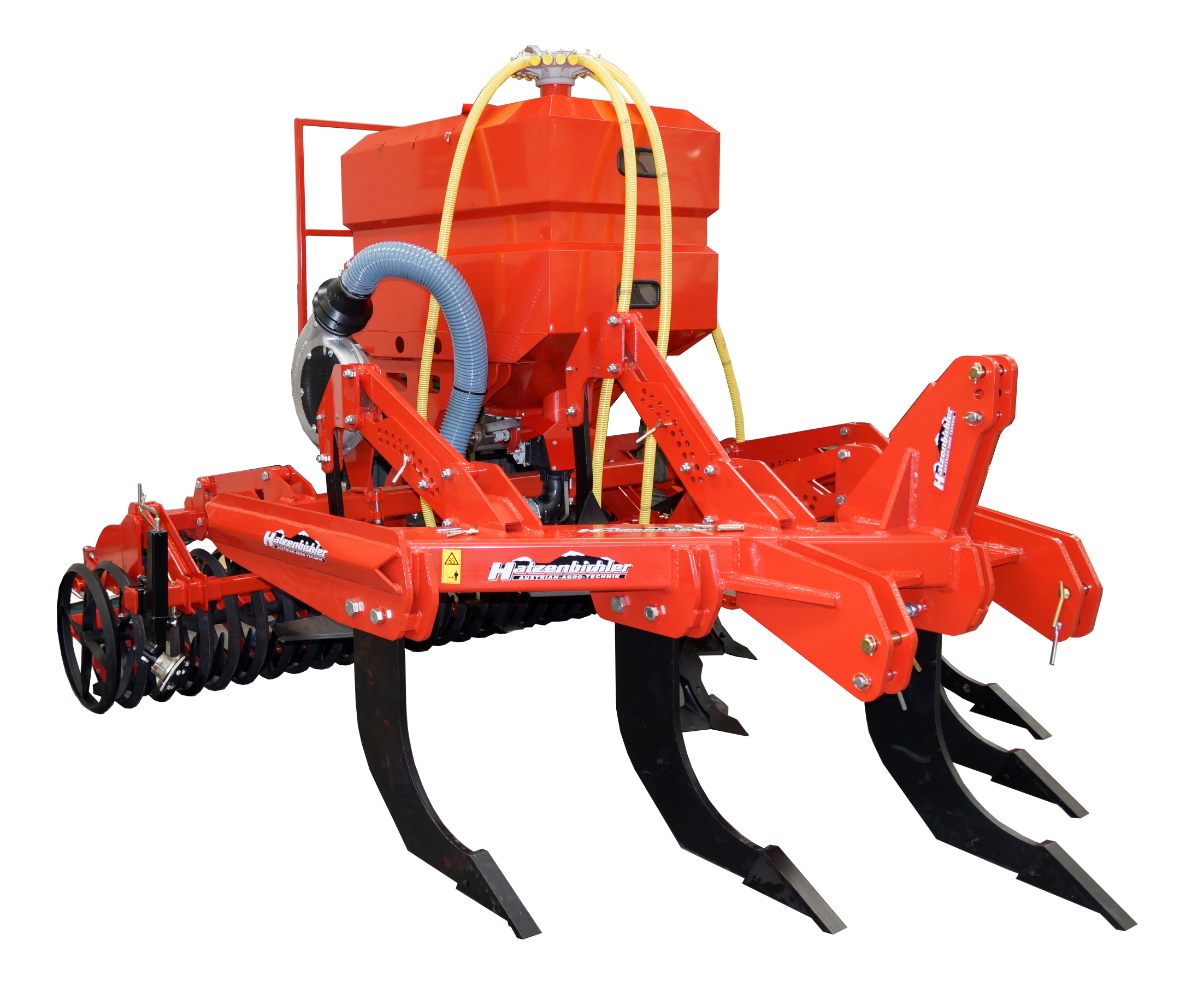

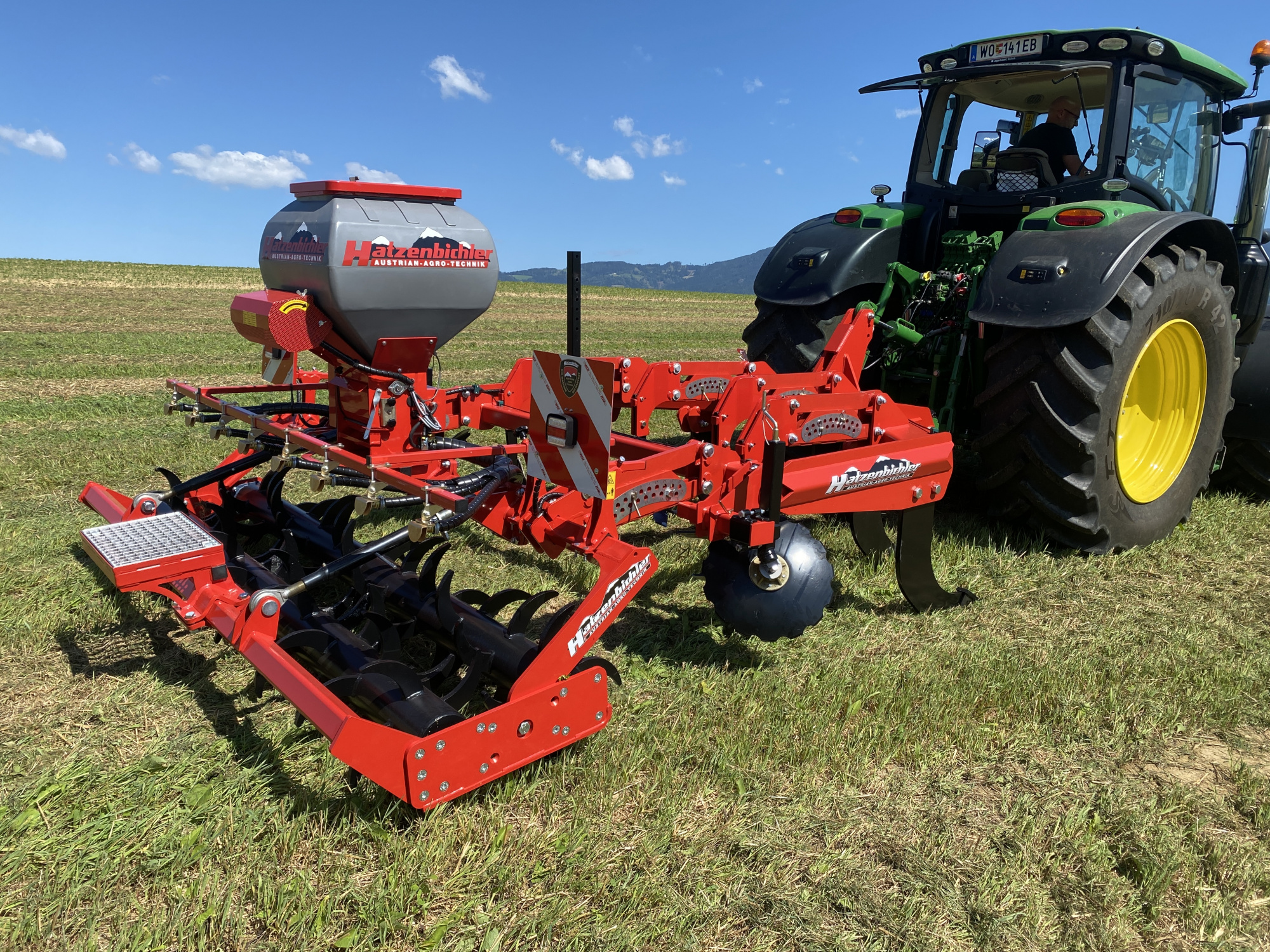

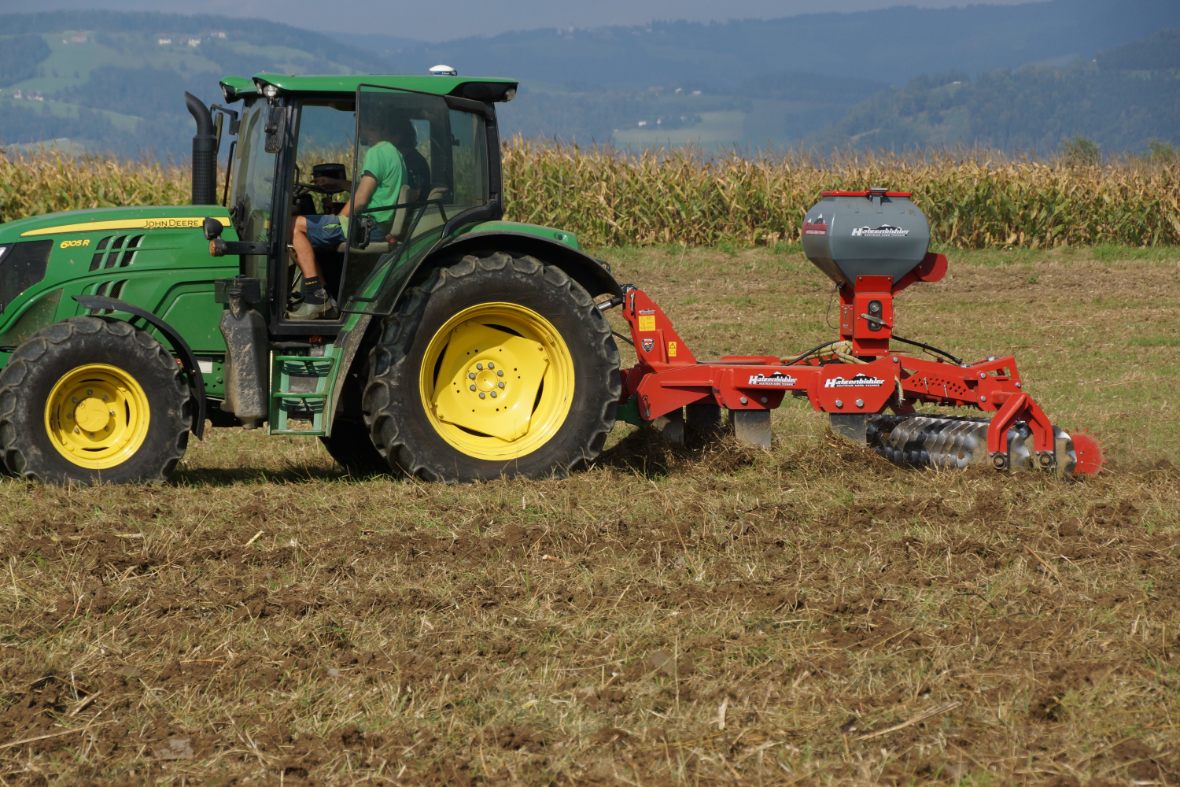

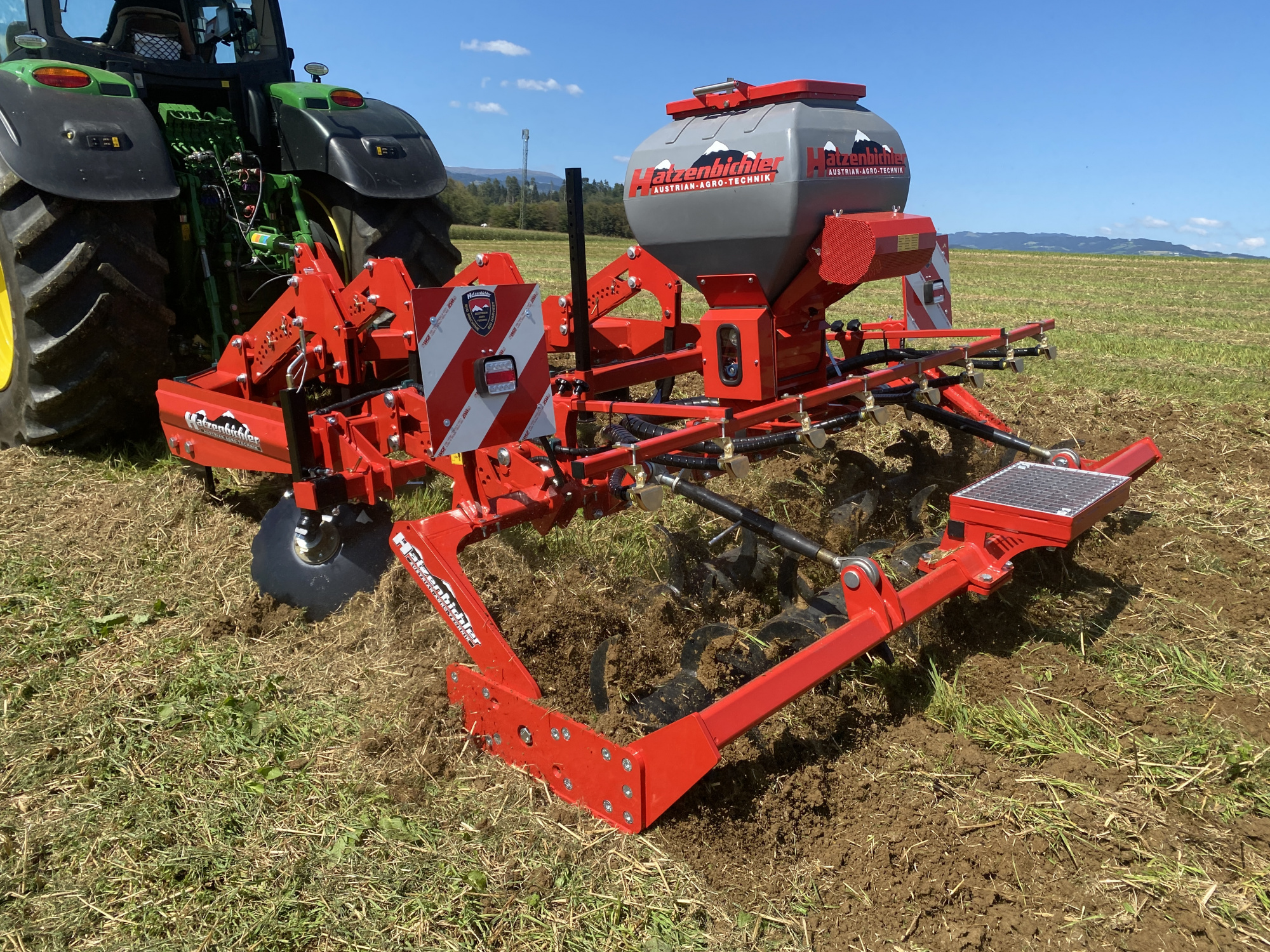

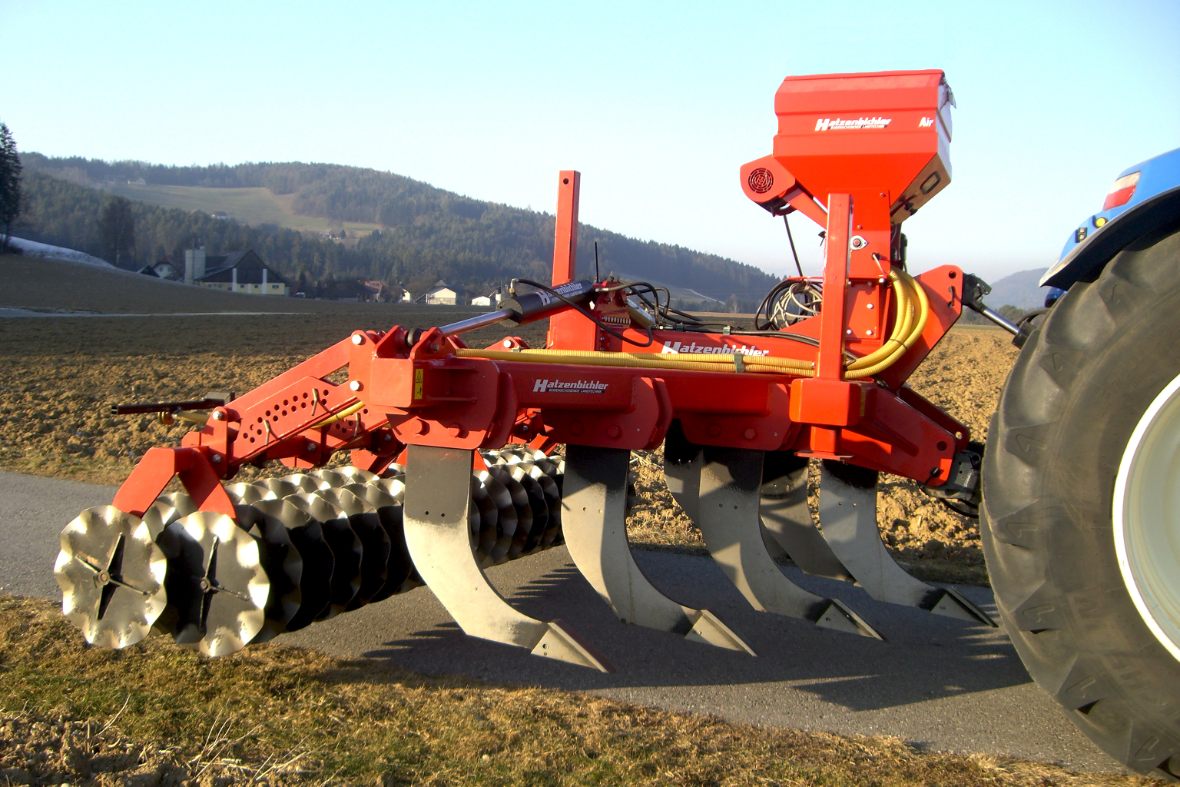

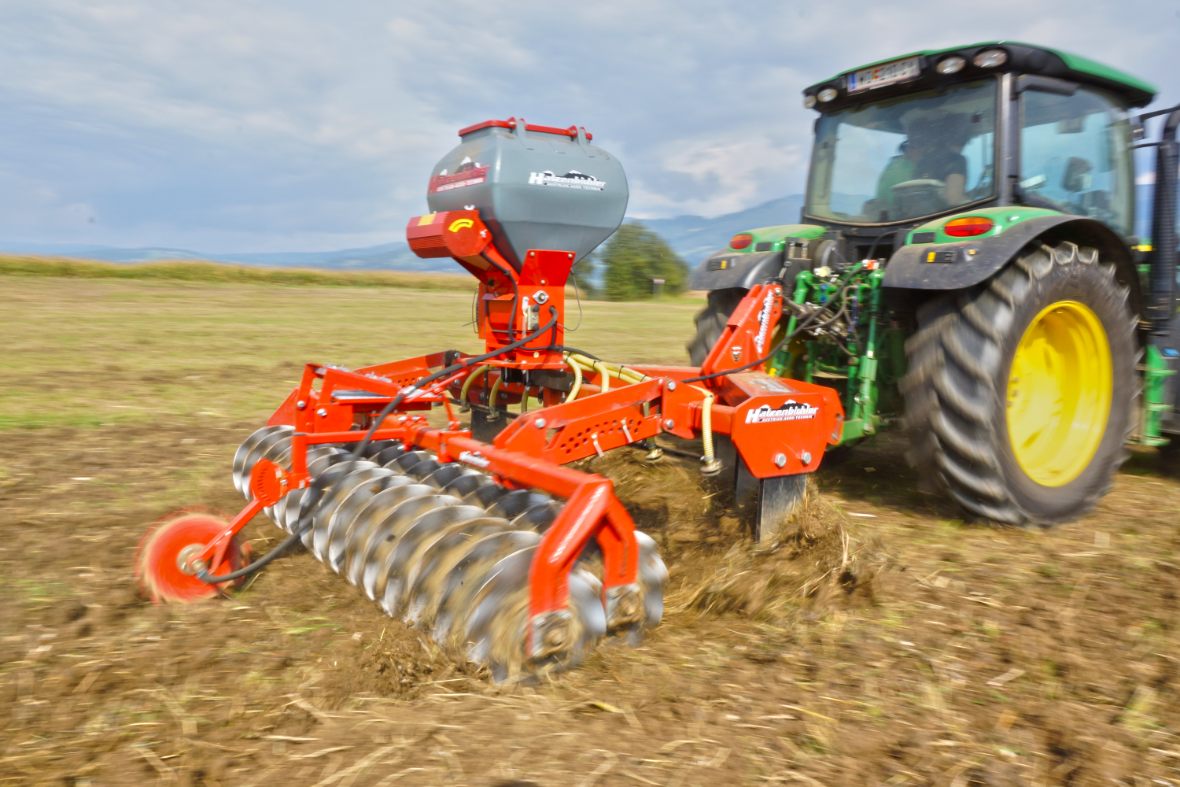

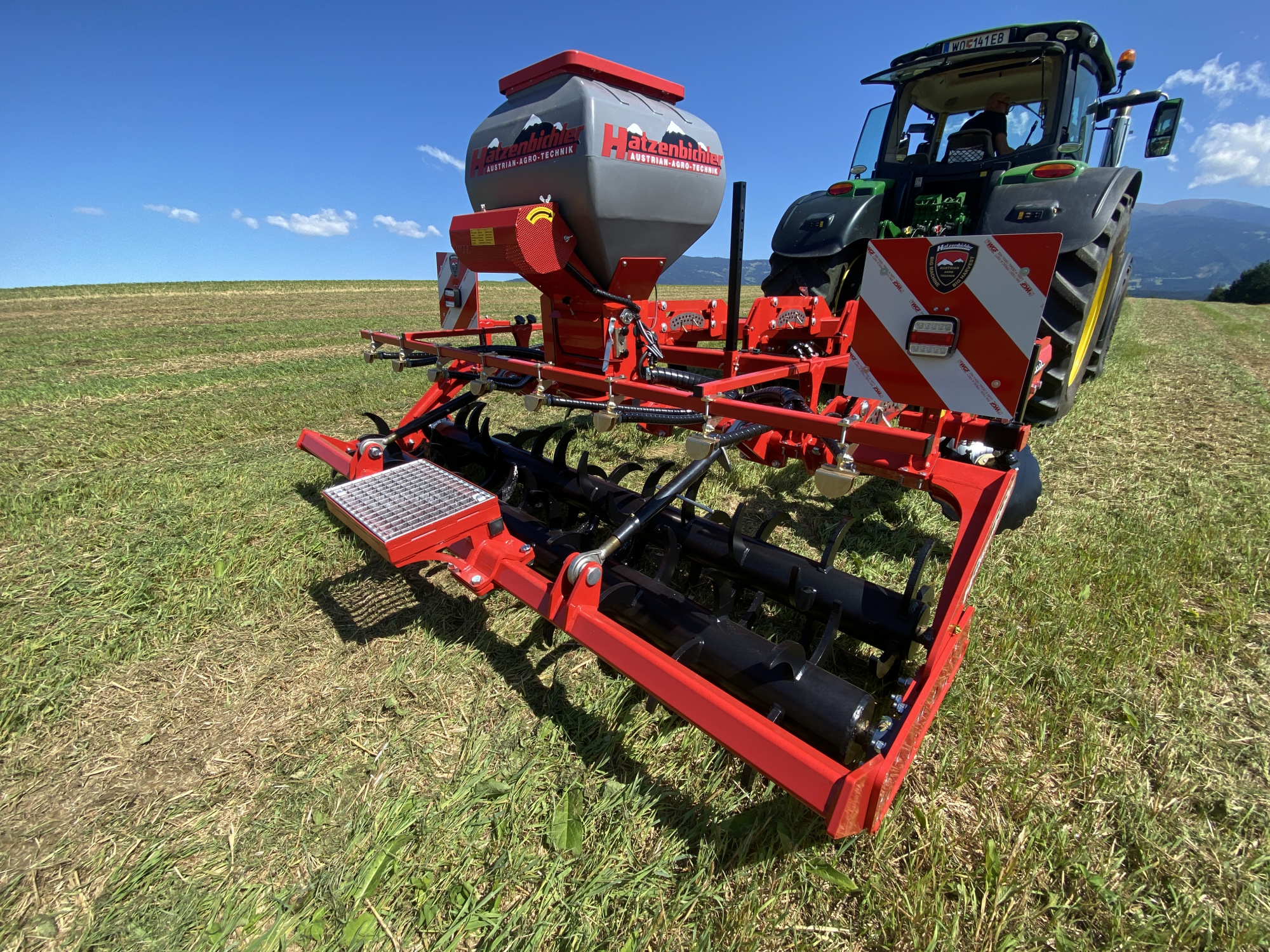

There is also the possibiliy to mount a pneumatic seeding machine for spreading a cover crop.
For more information klick here (pneumatic seeding machines)
Excellent Indentation
Special arrangment on the V-frame (inside diameter 80cm). The distance between tines are 50 or 62cm.
3 different machine rollers
At the end of the machine rollers like wedge ring roller (diameter 600mm) master roller (diameter 490mm) or tube roller (diameter 500mm) for perfect soil conditions are available.
Benefits
We develop and build our products with the daily experiences of our customers in St. Andrä in Lavanttal Austria - the best engineering and highest manufacturing quality meet perfect spare parts supply. Our machines are for professionals - day after day!

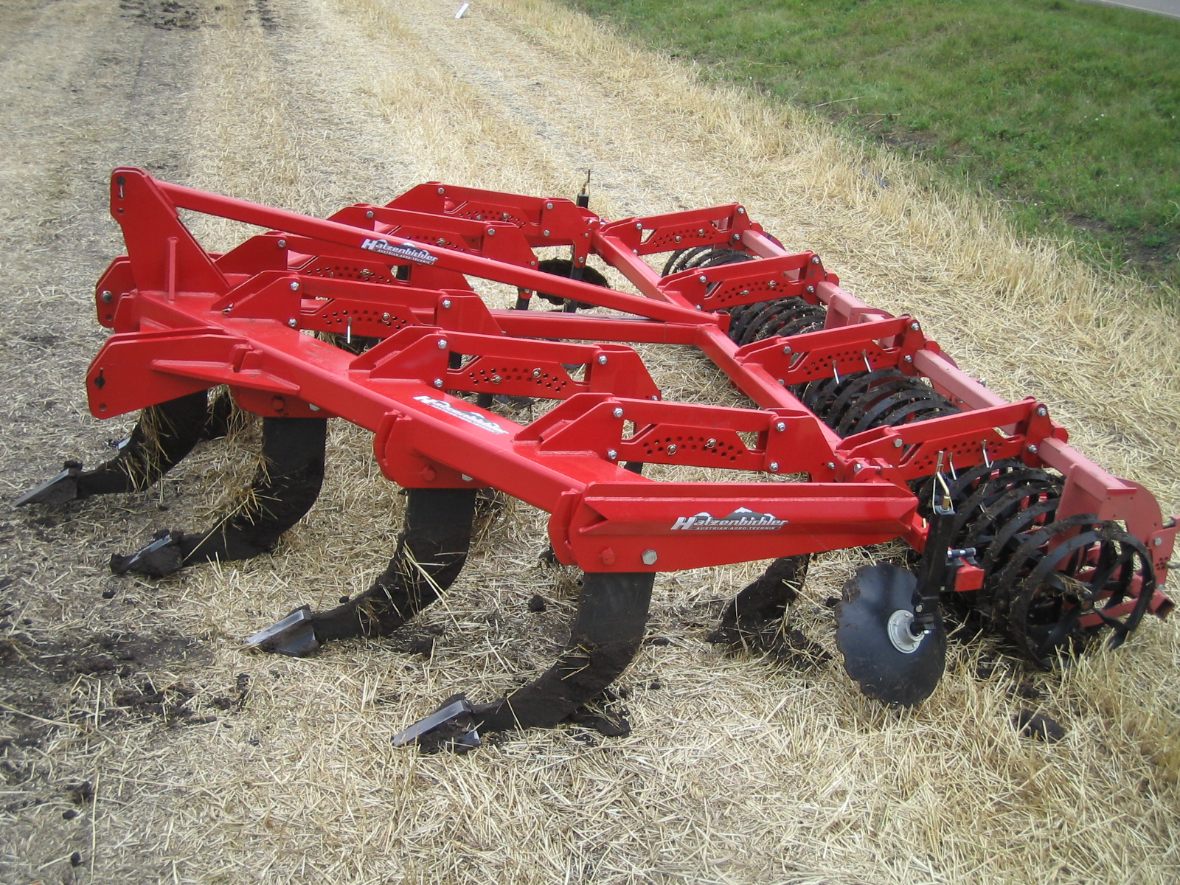

Subsoiler "Delta"

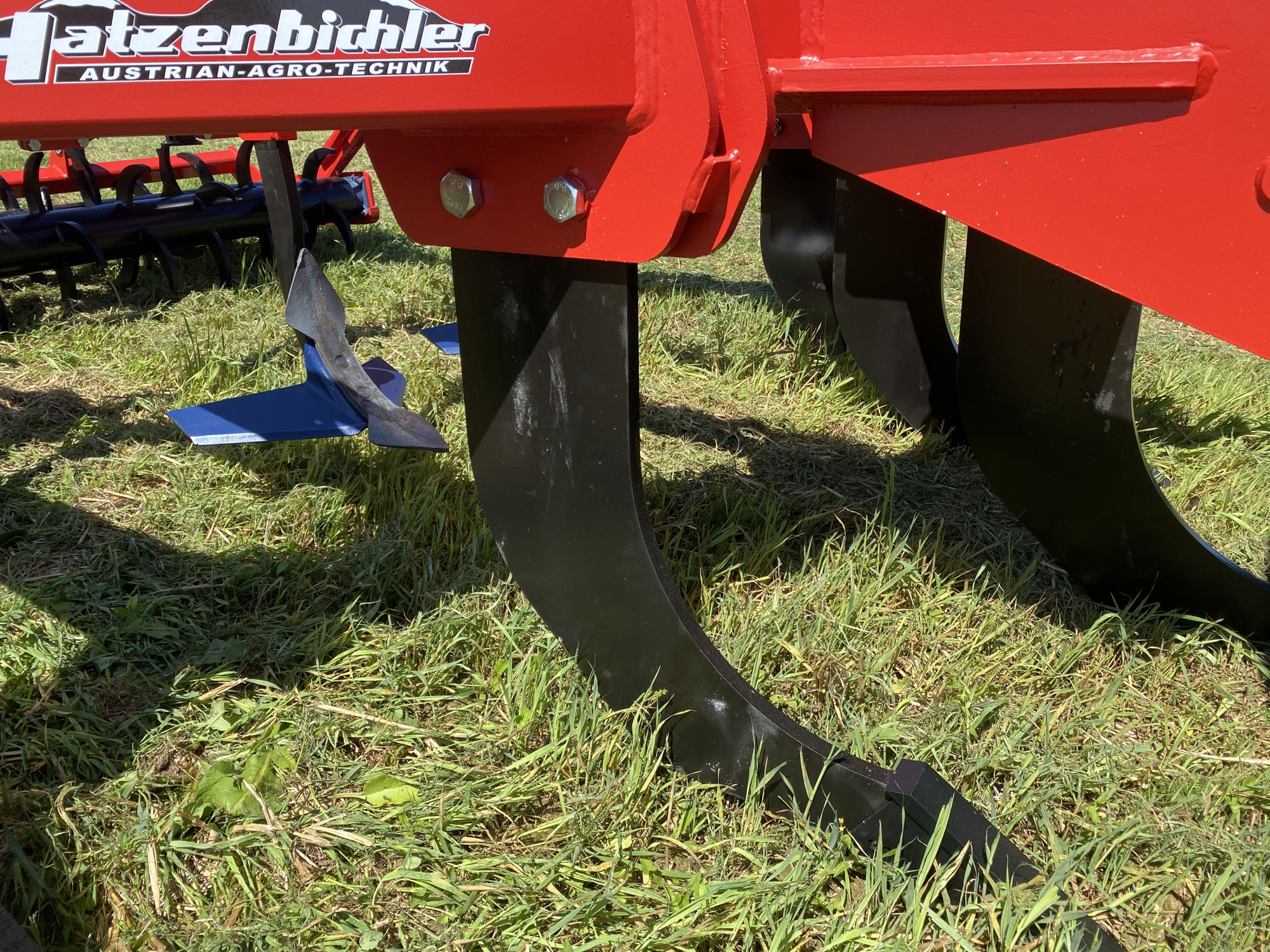

Special shape of the tine blades, protective shear bolt, diameter 25mm and special arrangment on the V-frame.
Video

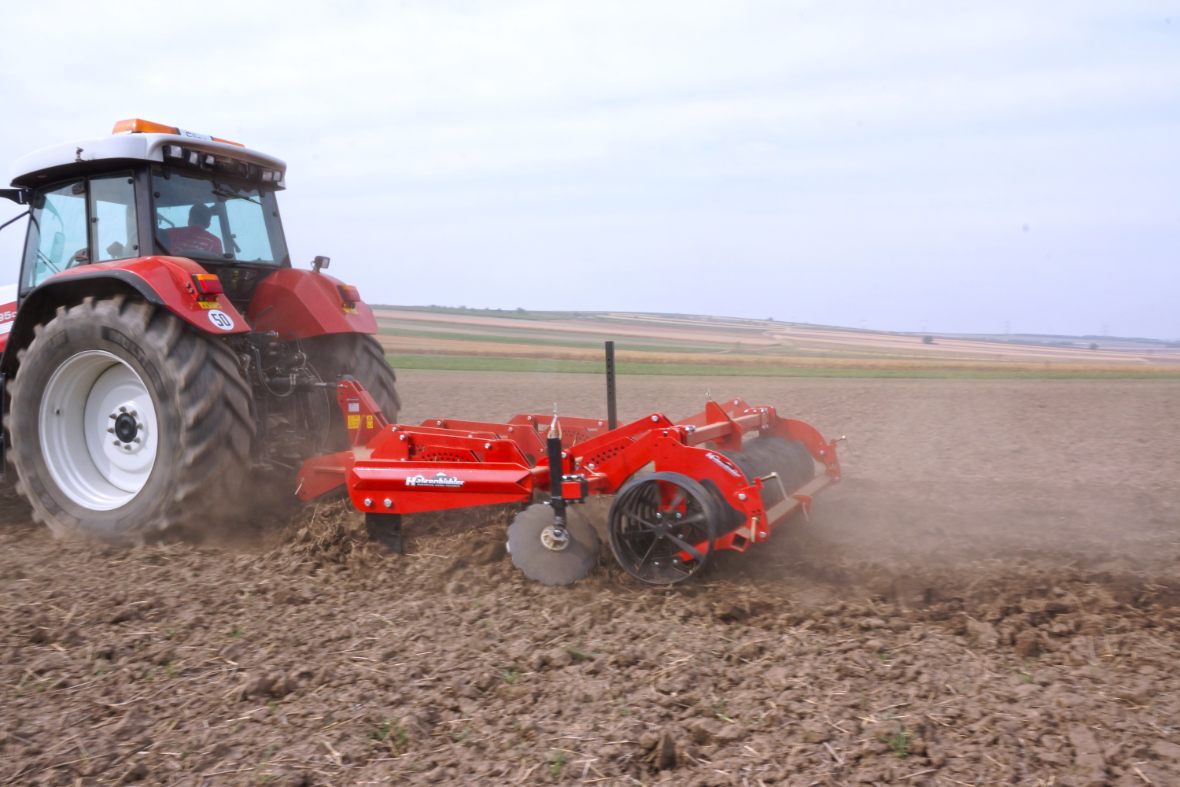

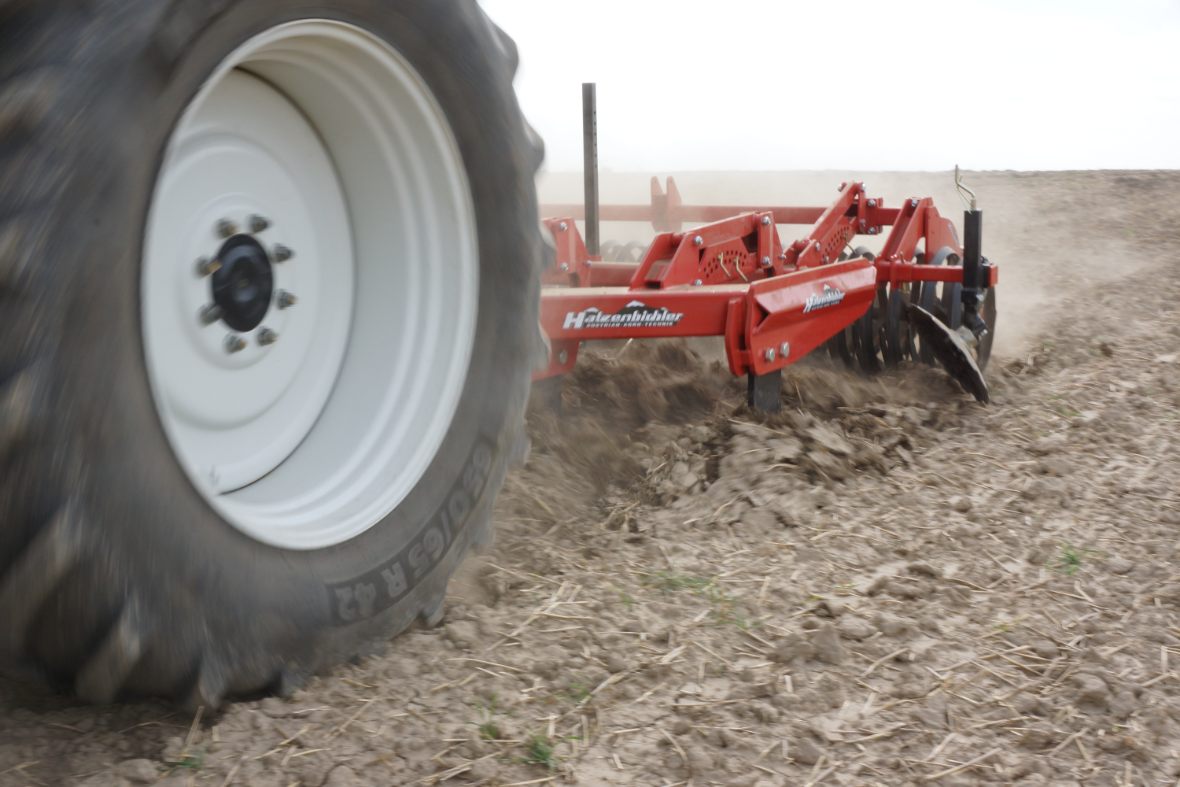

Hatzenbichler subsoiler "Delta" in use
Technical details
Subsoiler "Delta"
Equipment
- 3-point execution or pull type version
- stable tube base frame
- wear-resistant tine swords with shear bolt protection Ø = 25 mm
- wings or chisel shares
- passage height 800 mm
- depth adjustment with locking bolt on the roller
- various types of roller for almost all soil conditions.
- Master Roller roller Ø = 490 mm
- Wedge ring roller Ø 600 mm
- Pipe roller Ø = 500 mm
Execution with 3-tines with roller (rigid)
| working width | wings/small share | roller | weight approximately in kilograms | HP |
|---|---|---|---|---|
| 2,0m | 3 wings or 3 small | 1 tube roller | 675-690 | 80 |
| 2,0m | 3 wings or 3 small | 2 Master roller/ Wedge ring roller | 900-920 | 80 |
Execution with 5-tines with roller (rigid)
| working width | wings-/ small share | roller | Weight approximately in kilograms | HP |
|---|---|---|---|---|
| 2,50m | 5 wings or 5 small | 1 tube roller | 1.030-1.050 | 120 |
| 2,50m | 5 wings or 5 small | 2 Masterr roller /Wedge ring roller | 1.280-1.300 | 120 |
Execution with 7-tines with roller (rigid)
| working width | wing/small shares | roller | weight approximately in kilograms | HP |
|---|---|---|---|---|
| 4,0m | 7 wings | 2 Master roller/ Wedge ring roller | 1.750 | 200 |
| 4,0m | 7 small | 2 Master roller/ Wedge ring roller | 1.720 | 200 |
Execution with 7-tines with roller (hydraulic foldable)
| working width | wing/small share | roller | Weight approximately in kilograms | HP |
|---|---|---|---|---|
| 3,5m | 7 wings | 2 Master roller / Wedge ring roller |
2.500 | 200 |
| 3,5m | 7 small | 2 Master roller/ Wedge ring roller |
2.470 | 200 |

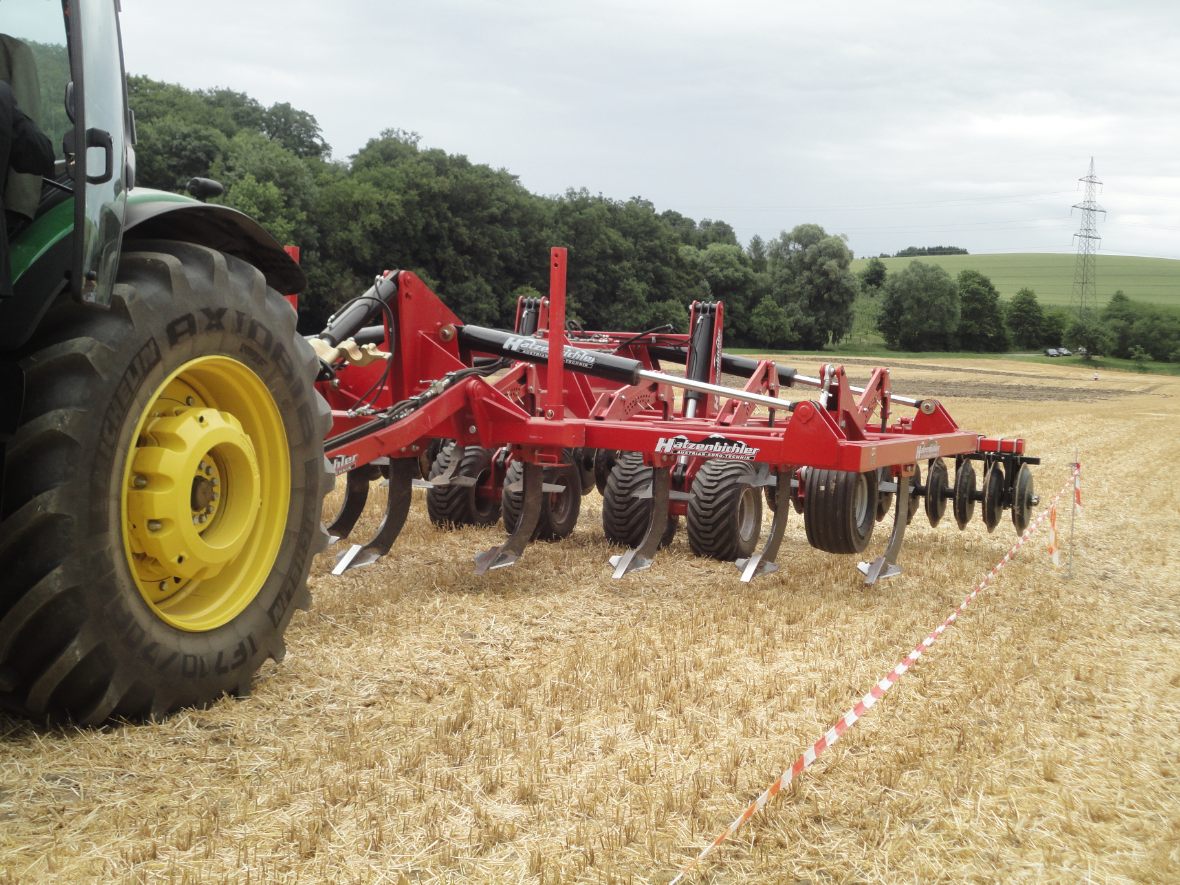

Execution with intermediate tines
| working width | wing/small share | roller | weight approximately in kilograms | HP |
|---|---|---|---|---|
| 3,00m 3-point hitch | 5 wings/small 4 intermediate tines |
wedge ring roller | 2.150 | 230 |
| 4,00m 3-point hitch | 7 wings/small 6 intermediate tines |
wedge ring roller | 3.240 | 350 |

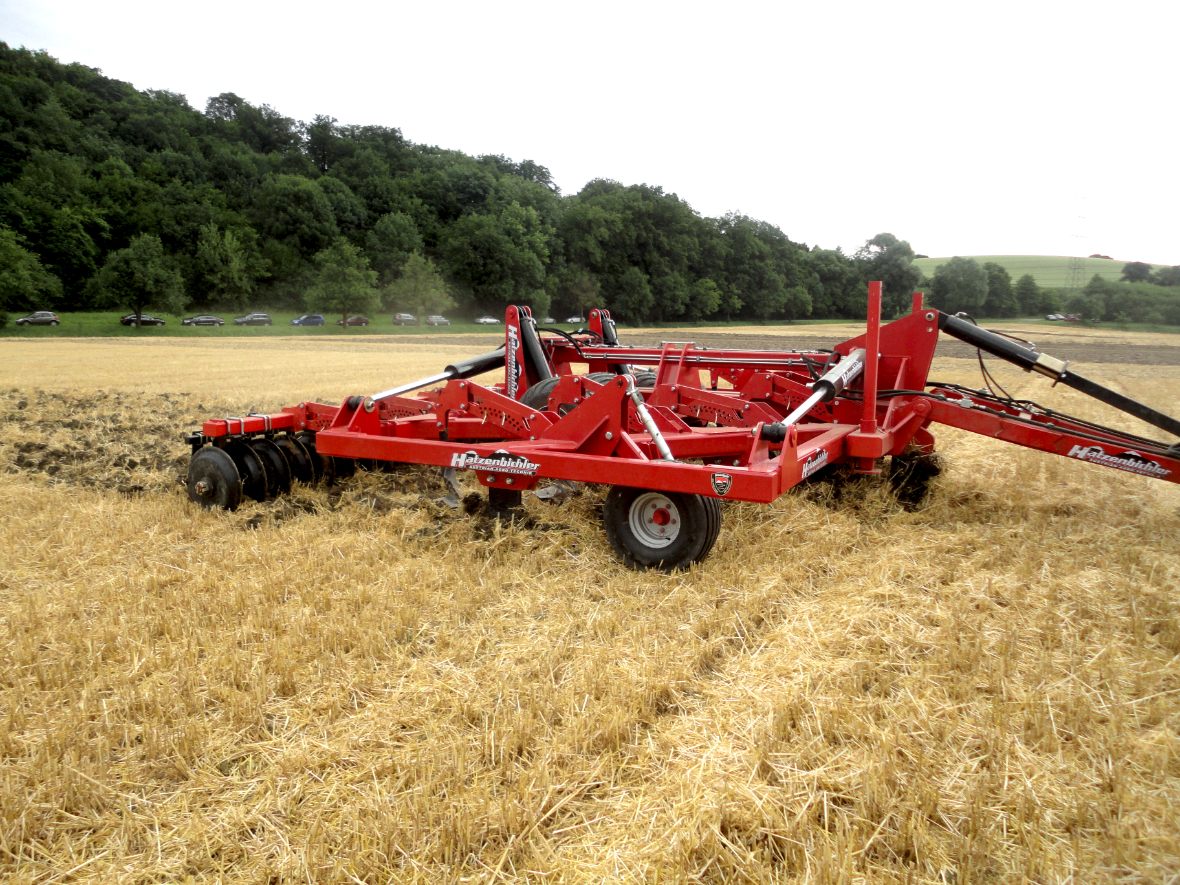

| 4,00m pull type | 7 wings/small 5 intermediate tines |
wedge ring roller | 3.500 | 350 |
| 6,00m pull type | 9 wings/small 7 intermediate tines |
wedge ring roller | 3.900 | 350 |
